DEHNcharge

1 Product

Part No. 900095 DCG T1 BATT 1500 FM

GTIN 4013364510838, Customs tariff No. (EU): 85354000, Gross weight: 587.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

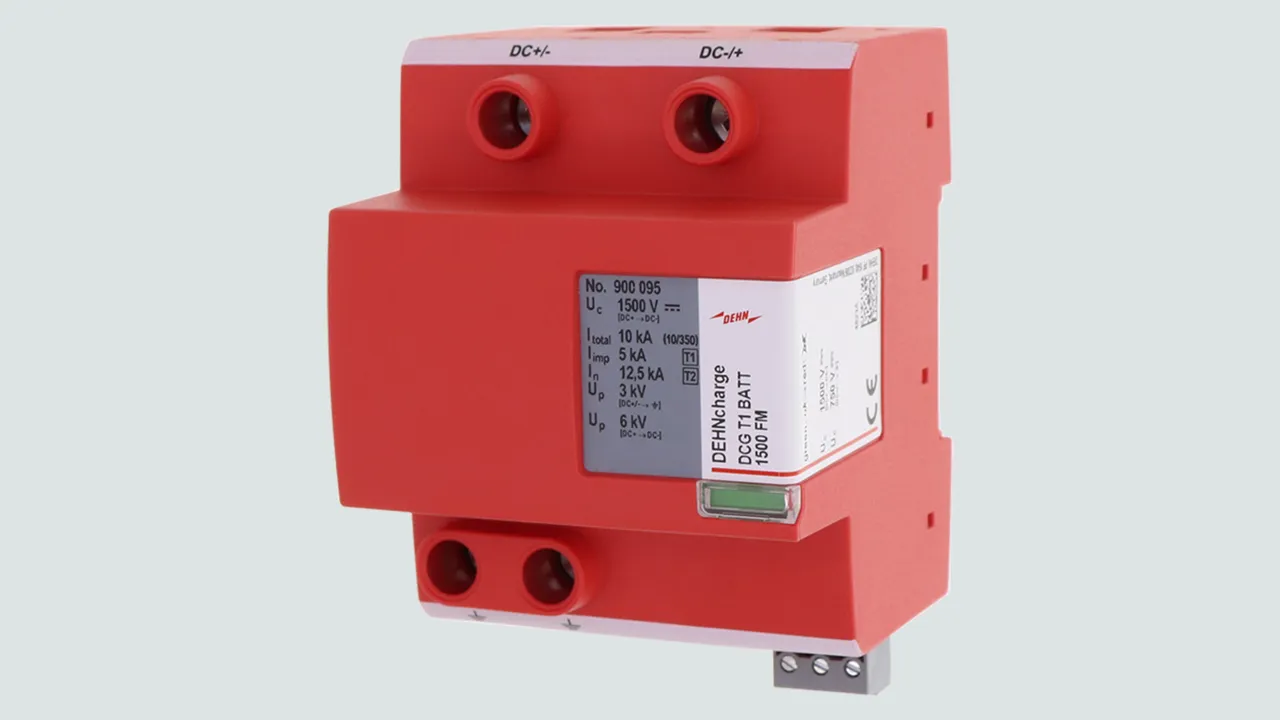

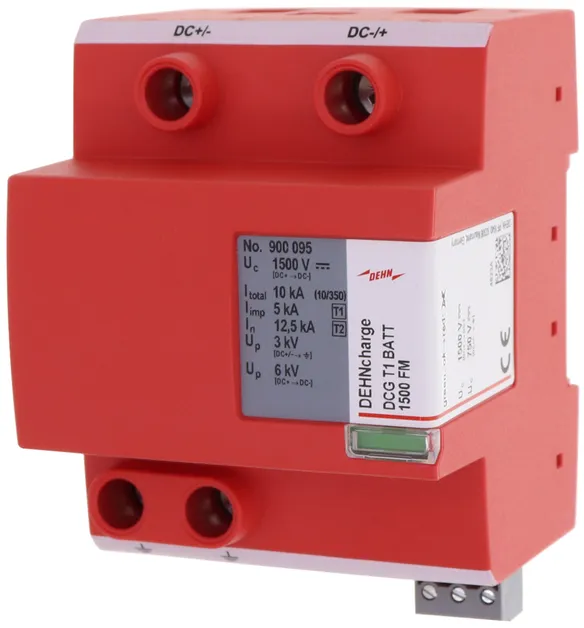

Combined arrester DEHNcharge T1 BATT 1500 FM
Multipole combined arrester Type 1 + Type 2
for battery storage systems up to 1,500 V DC, width of 4 standard DIN modules
Type 1+ Type 2 arrester based on EN 61643-11
Combined disconnection and short-circuiting device
with remote signalling contact
Fault indication
Maximum PV voltage: <= 1,500 V DC
Total discharge current: 5 kA
Voltage protection level: <= 3 kV
Short-circuit strength Iscpv: 100 kA

Brand: DEHN
Type: DCG T1 BATT 1500 FM
Part No.: 900095
or equivalent.

Technical data

SPD based on IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage DC [DC+/DC-] (U_C )	≤ 1500 V
Max. continuous operating voltage (DC) [(DC+/DC-) --> PE] (U_C )	≤ 750 V
Short-circuit withstand capability (t ≤ 5.83 ms) (I_SCCR )	100 kA_rms
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	10 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	5 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 6 kV
Type of remote signalling contact	Changeover contact

SPD based on IEC 61643-11	type 1 + type 2 / class I + class II
Max. continuous operating voltage DC [DC+/DC-] (U_C )	≤ 1500 V
Max. continuous operating voltage (DC) [(DC+/DC-) --> PE] (U_C )	≤ 750 V
Short-circuit withstand capability (t ≤ 5.83 ms) (I_SCCR )	100 kA_rms
Backup fuse for DC battery storage systems up to I_SCCR	Bussman HLS 2000Vdc /200 A 2+/A173 DST aR
Backup fuse for DC battery storage systems up to I_SCCR	Mersen Protistor D122SD20C200QF 200A 2000V DC aR
Nominal discharge current (8/20 µs) (I_n )	12.5 kA
Total discharge current (10/350 µs) [DC+/DC- -> PE] (I_total )	10 kA
Lightning impulse current (10/350 µs) [DC+ -> PE/DC- -> PE] (I_imp )	5 kA
Voltage protection level [(DC+/DC-) -> PE] (U_P )	< 3 kV
Voltage protection level [DC+ -> DC-] (U_P )	< 6 kV
Response time (t_A )	≤ 100 ns
Protective conductor current (I_PE )	≤ 25 µA
Operating temperature range (T_U )	-40°C to +80°C
Operating state / fault indication	green / red
Number of ports	1
Cross-sectional area (min.)	1.5 mm²solid / fine-stranded
Cross-sectional area (max.)	35 mm²stranded / 25 mm²fine-stranded
For mounting on	35 mm DIN rails acc. to EN 60715
Enclosure material	Thermoplastic, red, UL 94 V-0
Place of installation	Indoor
Degree of protection	IP 20

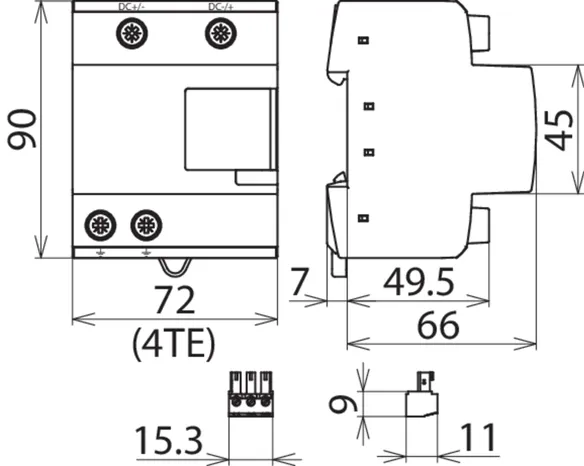

Dimensions	4 module(s), DIN 43880
Type of remote signalling contact	Changeover contact
Switching capacity (a.c.)	250 V / 0.5 A
Switching capacity (d.c.)	250 V / 0.1 A; 125 V / 0.2 A; 75 V / 0.5 A
Cross-sectional area for remote signalling terminals	max. 1.5 mm² solid / fine-stranded
