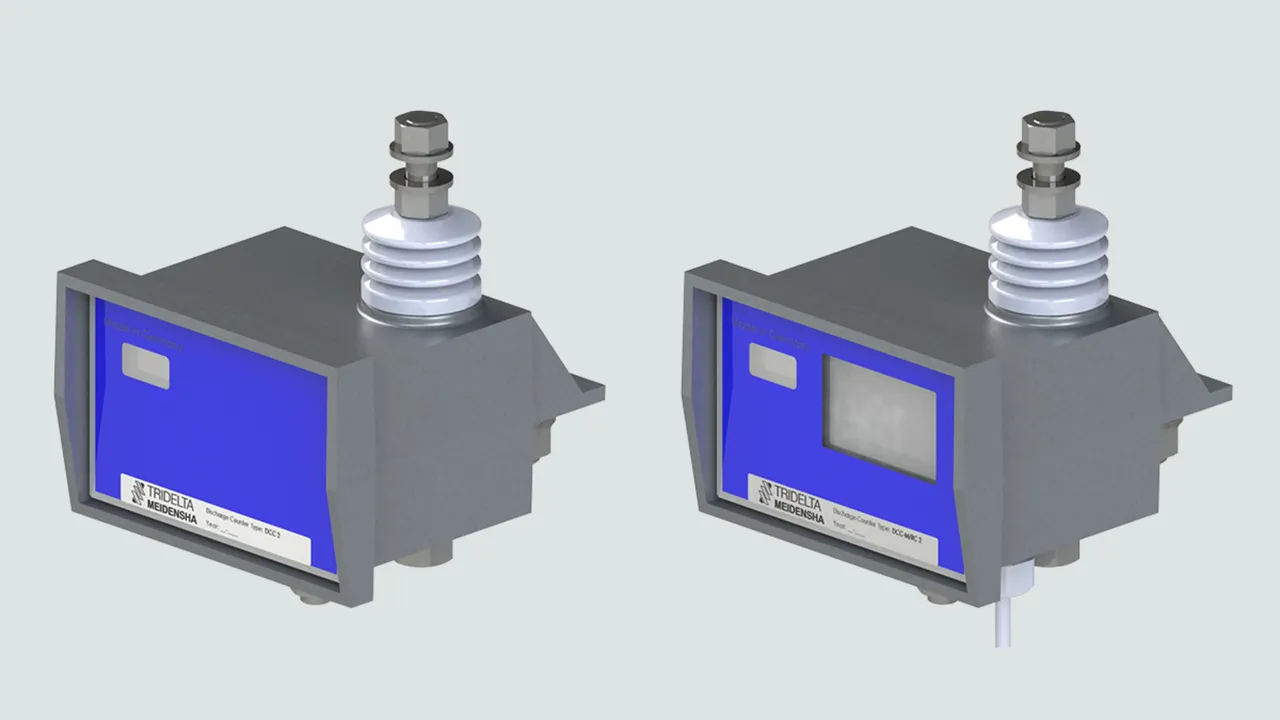

Impulse Counter

Resistant to currents as high as 100 kA (4/10 µs)
Fast value acquisition
Corrosion-resistant
Mechanically stable
Water-proof
Maintenance-free
Auxiliary contacts (remote signalling contacts) optionally available

IZ(M) 100

3 Products

Part No. 994001 IZ 100

GTIN 4013364103122, Customs tariff No. (EU): 90303900, Gross weight: 3.10 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Impulse meter IZ 100
Impulse meter
with counter for registration
of discharge currents
Quick data acquisition
Corrosion resistant
Min. count current: 100 A (8/20)
Max. high current withstand capability:
100 kA (4/10)
Terminal bolt: M12
Aluminium enclosure: IP 67; grey
Supply and mount

Brand: DEHN
Type: IZ 100
Part No.: 994001
or equivalent.

Technical data

Register	six-digit
Min. sensitivity of the counting current	100 A (8/20 µs)
Max. high current resistance	100 kA (4/10 µs)
Voltage drop at 20 kA (8/20 µs)	1 kV s
Max. counting speed	5 counts per second
Housing material	powder-coated aluminium
Colour	grey
Earth-side connection	M12 threaded pin with two nuts made of StSt
Phase-side connection	M12 threaded pin with two nuts made of StSt
Housing attachment	rear lug / M12 or additional fixing angle

Product 994001 was added to Notepad.

Go to Notepad

Product 994001 was added to the cart.

Go to Web-Shop

Part No. 994002 IZM 100

GTIN 4013364103139, Customs tariff No. (EU): 90303900, Gross weight: 3.40 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Impulse meter IZM 100
Impulse meter
with counter and measuring scale
for recording of discharge currents and
registration of leakage currents
Quick data acquisition
Corrosion resistant
Min. count current: 100 A (8/20)
Max. high current withstand capability:
100 kA (4/10)
Measuring scale: (0...21) mArms
Terminal bolt: M12
Aluminium enclosure: IP 67; grey
Supply and mount

Brand: DEHN
Type: IZM 100
Part No.: 994002
or equivalent.

Technical data

Measuring scale

0-30 mA_rms

Register	six-digit
Min. sensitivity of the counting current	100 A (8/20 µs)
Max. high current resistance	100 kA (4/10 µs)
Voltage drop at 20 kA (8/20 µs)	1 kV s
Measuring scale	0-30 mA_rms
Max. counting speed	5 counts per second
Housing material	powder-coated aluminium
Colour	grey
Earth-side connection	M12 threaded pin with two nuts made of StSt
Phase-side connection	M12 threaded pin with two nuts made of StSt
Housing attachment	rear lug / M12 or additional fixing angle

Product 994002 was added to Notepad.

Go to Notepad

Product 994002 was added to the cart.

Go to Web-Shop

Part No. 994004 IZ 100 FM

GTIN 4013364122574, Customs tariff No. (EU): 90303900, Gross weight: 1.80 kg, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Brand: DEHN
Type: IZ 100 FM
Part No.: 994004
or equivalent.

Technical data

Register	six-digit
Min. sensitivity of the counting current	100 A (8/20 µs)
Max. high current resistance	100 kA (4/10 µs)
Voltage drop at 20 kA (8/20 µs)	1 kV s
Max. counting speed	5 counts per second
Housing material	powder-coated aluminium
Colour	grey
Earth-side connection	M12 threaded pin with two nuts made of StSt
Phase-side connection	M12 threaded pin with two nuts made of StSt
Housing attachment	rear lug / M12 or additional fixing angle
Type of remote signalling contact	make contact
Switching capacity (a.c.)	250 V / 0.5 A
Length of two-wire cable (make contact)	approx. 0.4 m
