Roof Conductor Holders with Angled Brace for Roof Surfaces

For hooking on the roof tiles.

With conductor holder DEHNsnap

Loose conductor leading.

1 Product

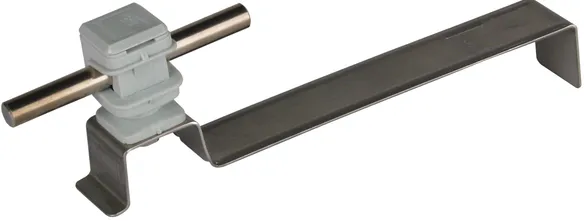

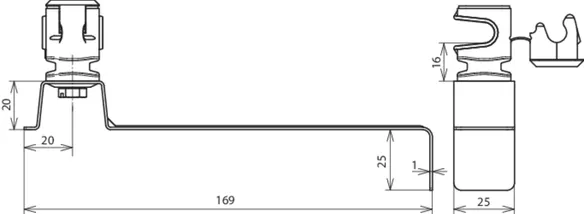

Part No. 204359 DLH DS 8 H16 L169 WS V2A

GTIN 4013364082779, Customs tariff No. (EU): 85389099, Gross weight: 64.02 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

Roof conductor holder DEHNsnap for gabled roofs, StSt, height: 16 mm, grey
Roof conductor holder, with angled brace for roof surfaces for hooking into the roofing tile or the roof battens
with DEHNsnap conductor holder
Material of roof conductor holder: StSt
Length of brace: 169 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●
Conductor holder support Rd: 8 mm

Brand: DEHN
Type: DLH DS 8 H16 L169 WS V2A
Part No.: 204359
or equivalent.

Certificates



Technical data

Material of roof conductor holder StSt
Length of brace (l1) 169 mm
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

Product 204359 was added to Notepad.

Go to Notepad

Product 204359 was added to the cart.

Go to Web-Shop

With conductor holder DEHNgrip

Loose conductor leading.

1 Product

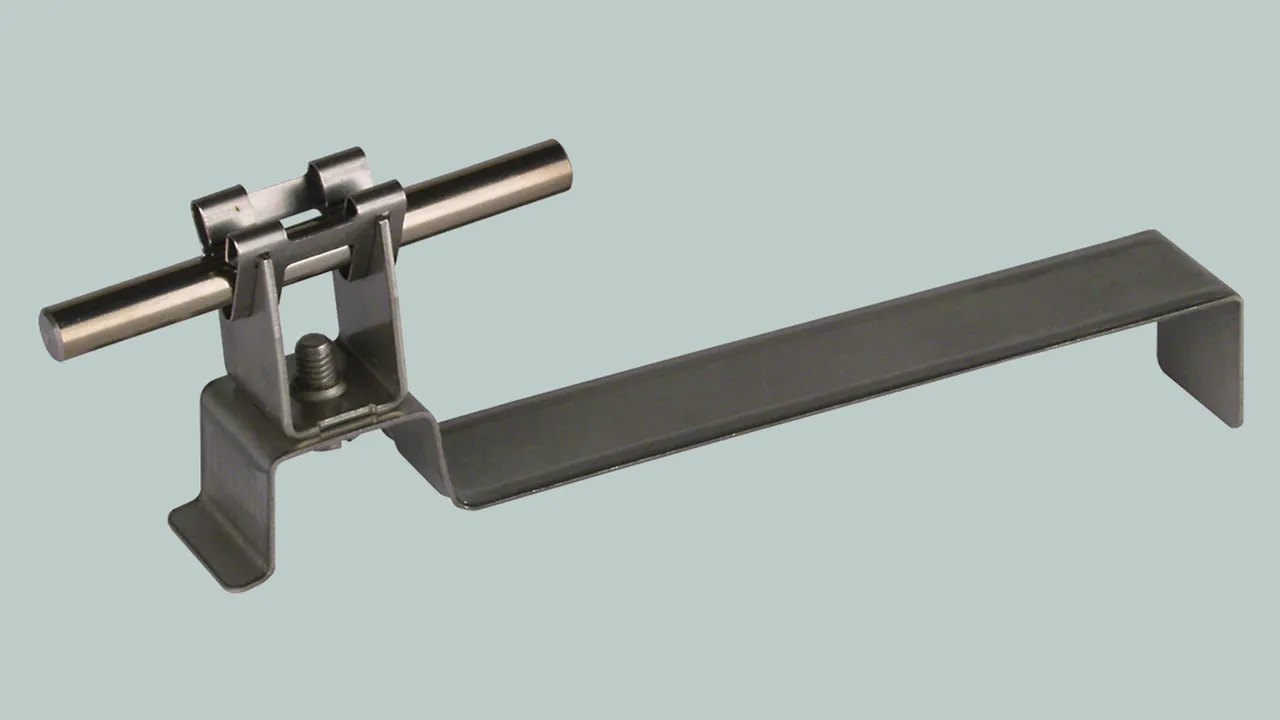

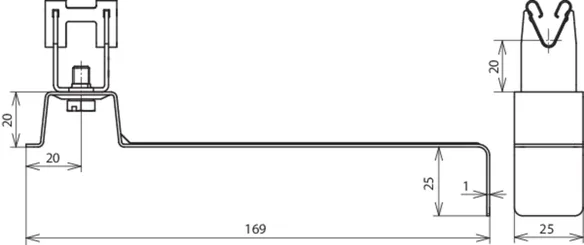

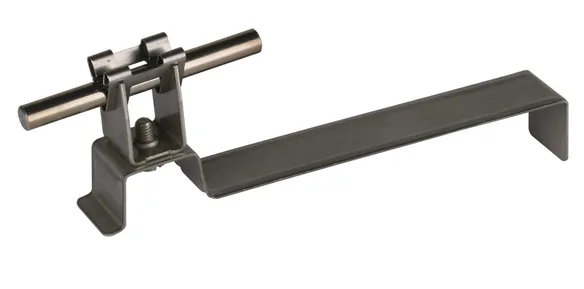

Part No. 206359 DLH DG 8 H20 L169 WS V2A

GTIN 4013364047723, Customs tariff No. (EU): 85389099, Gross weight: 67.92 g, PU: 50.00 pc(s)

Predecessor

Images

Additional information

Roof conductor holder DEHNgrip for gabled roofs, StSt, height: 20 mm
Roof conductor holder, with angled brace for roof surfaces for hooking into the roofing tile or the roof battens
with DEHNgrip conductor holder
Material of roof conductor holder: StSt
Length of brace: 169 mm
Material of conductor holder: StSt
Conductor holder support Rd: 8 mm

Brand: DEHN
Type: DLH DG 8 H20 L169 WS V2A
Part No.: 206359
or equivalent.



Technical data

Material of roof conductor holder StSt
Length of brace (l1) 169 mm
Height of conductor holder 20 mm
Material of conductor holder StSt
Conductor holder support Rd 8 mm
Standard EN 62561-4

Product 206359 was added to Notepad.

Go to Notepad

Product 206359 was added to the cart.

Go to Web-Shop

With conductor holder DEHNquick

For hooking on the roof tiles or battens, fixed lengthwise or crosswise conductor leading.

2 Products

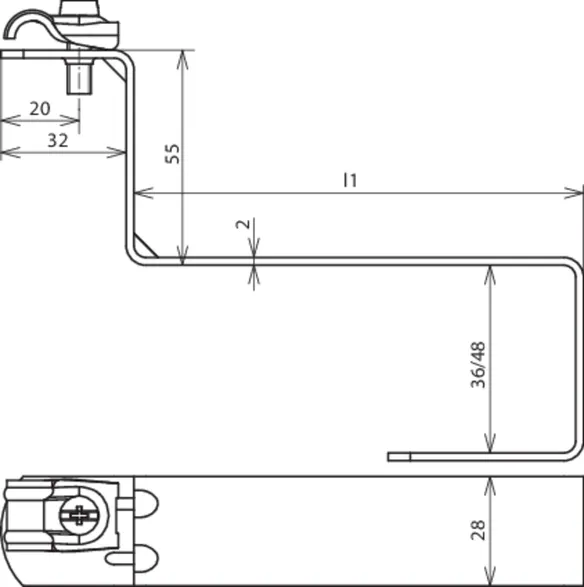

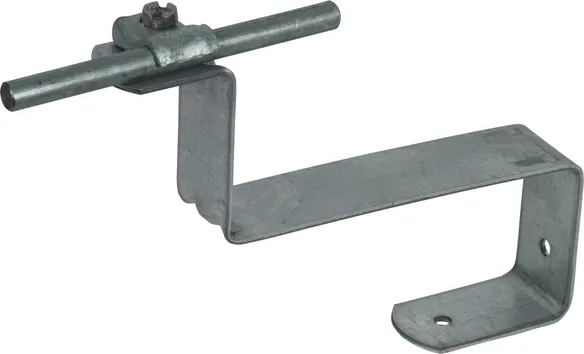

Part No. 202050 DLH DQ 6.10 H55 L115 WS STTZN

GTIN 4013364020214, Customs tariff No. (EU): 85389099, Gross weight: 142.94 g, PU: 1.00 pc(s)

Images

Additional information

Roof conductor holder DEHNquick for gabled roofs, St/tZn
Roof conductor holder, with angled brace for roof surfaces for hanging into the roofing tile or the roof battens
with DEHNquick conductor holder
Material of roof conductor holder: St/tZn
Length of brace: 115 mm
Material of conductor holder: St/tZn
Conductor holder support Rd: 6-10 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L115 WS STTZN
Part No.: 202050
or equivalent.

Certificates



Technical data

Material of roof conductor holder St/tZn
Length of brace (l1) 115 mm
Material of conductor holder St/tZn
Conductor holder support Rd 6-10 mm

Product 202050 was added to Notepad.

Go to Notepad

Product 202050 was added to the cart.

Go to Web-Shop

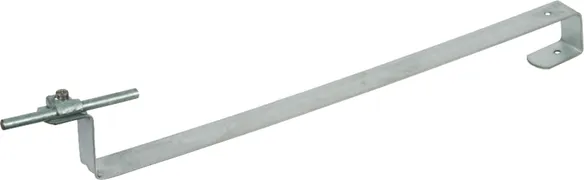

Part No. 202080 DLH DQ 6.10 H55 L410 WS STTZN

GTIN 4013364020276, Customs tariff No. (EU): 85389099, Gross weight: 256.58 g, PU: 1.00 pc(s)

Predecessor

Images

Additional information

Roof conductor holder DEHNquick for gabled roofs, St/tZn
Roof conductor holder, with angled brace for roof surfaces for hooking into the roofing tile or the roof battens
with DEHNQUICK conductor holder
Material of roof conductor holder: St/tZn
Length of brace: 410 mm
Material of conductor holder: St/tZn
Conductor holder support Rd: 6-10 mm

Brand: DEHN
Type: DLH DQ 6.10 H55 L410 WS STTZN
Part No.: 202080
or equivalent.

Certificates



Technical data

Material of roof conductor holder St/tZn
Length of brace (l1) 410 mm
Material of conductor holder St/tZn
Conductor holder support Rd 6-10 mm

Product 202080 was added to Notepad.

Go to Notepad

Product 202080 was added to the cart.

Go to Web-Shop
