KS Connectors

Clamping screw connector (KlemmSchrauben-Verbinder) for lightning current carrying connection of round conductors, e.g. to flat profiles, downpipe clamps or other parts of the lightning protection system.

One-piece, St/tZn

With screw and nut M10.

2 Products

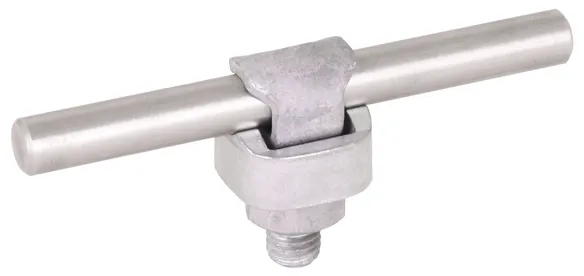

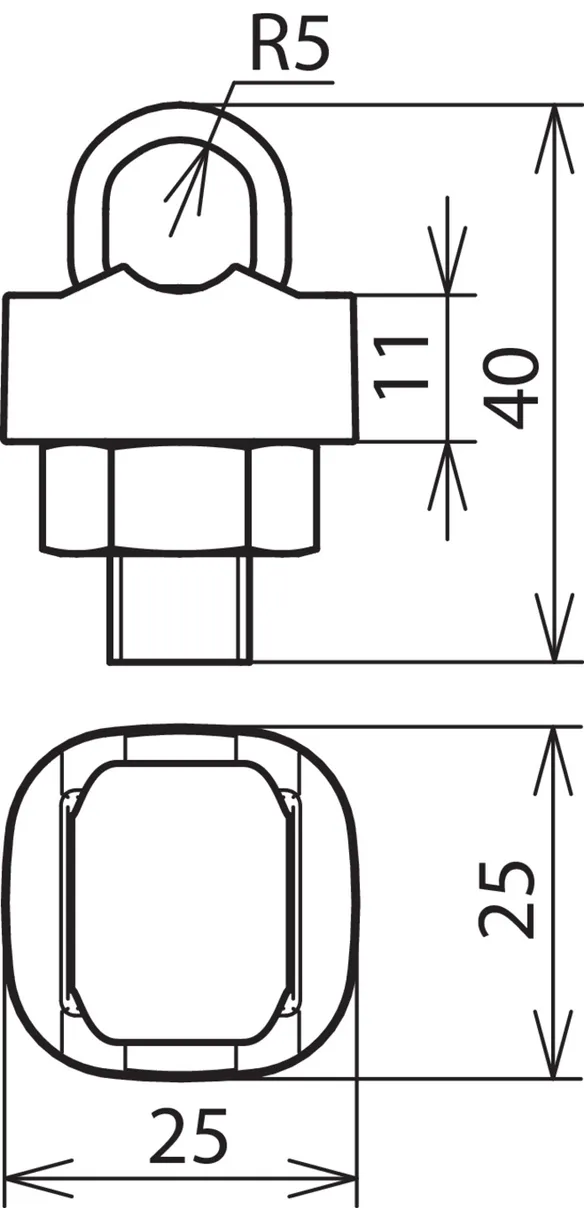

Part No. 301000 KSV 7.10 STTZN

GTIN 4013364067035, Customs tariff No. (EU): 85359000, Gross weight: 62.00 g, PU: 100.00 pc(s)

Images

Additional information

KS connector, one-piece, St/tZn
KS connector for connection to flat profiles
Material of clamping screw: St/tZn
Material of clamp: ZDC
Clamping range Rd: 7-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: KSV 7.10 STTZN
Part No.: 301000
or equivalent.

Certificates



Technical data

Material of clamping screw St/tZn
Material of clamp ZDC
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 301000 was added to Notepad.

Go to Notepad

Product 301000 was added to the cart.

Go to Web-Shop

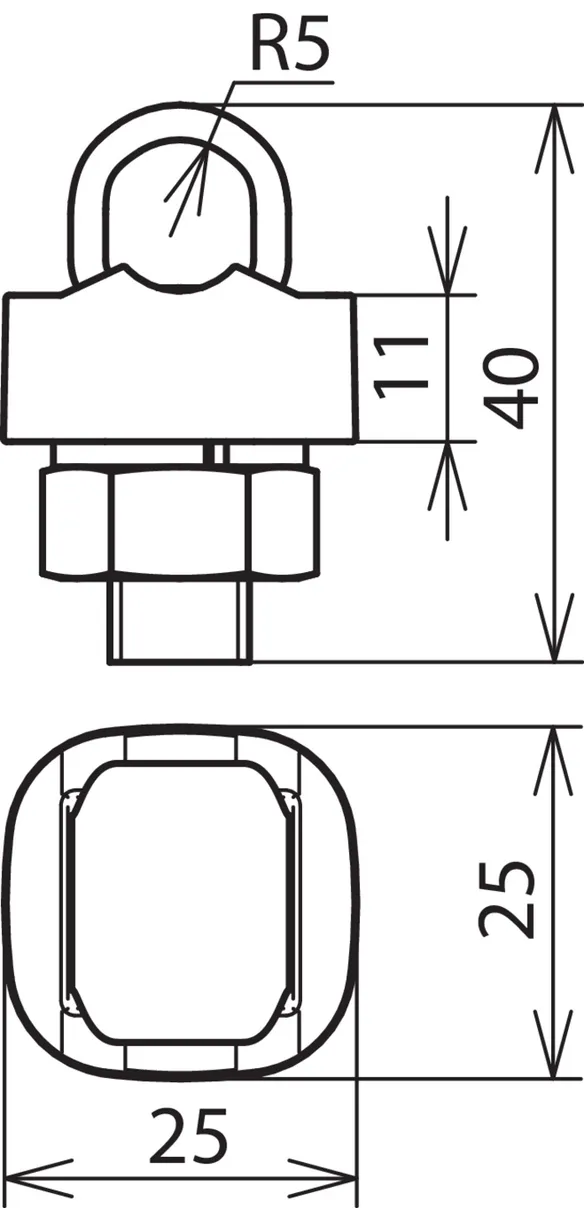

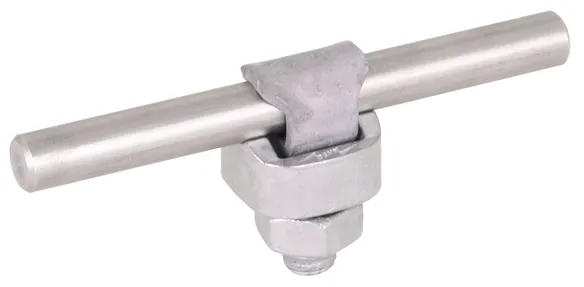

Part No. 301010 KSV 7.10 FER STTZN

GTIN 4013364067028, Customs tariff No. (EU): 85359000, Gross weight: 62.00 g, PU: 100.00 pc(s)

Images

Additional information

KS connector, one-piece, St/tZn
KS connector for connection to flat profiles
Material of clamping screw: St/tZn
Material of clamp: ZDC
Clamping range Rd: 7-10 mm
Type: + spring washer
Standard: EN 62561-1

Brand: DEHN
Type: KSV 7.10 FER STTZN
Part No.: 301010
or equivalent.

Certificates



Technical data

Material of clamping screw St/tZn
Material of clamp ZDC
Clamping range Rd 7-10 mm
Type + spring washer
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 301010 was added to Notepad.

Go to Notepad

Product 301010 was added to the cart.

Go to Web-Shop

One-piece, Cu

With screw and nut M10.

2 Products

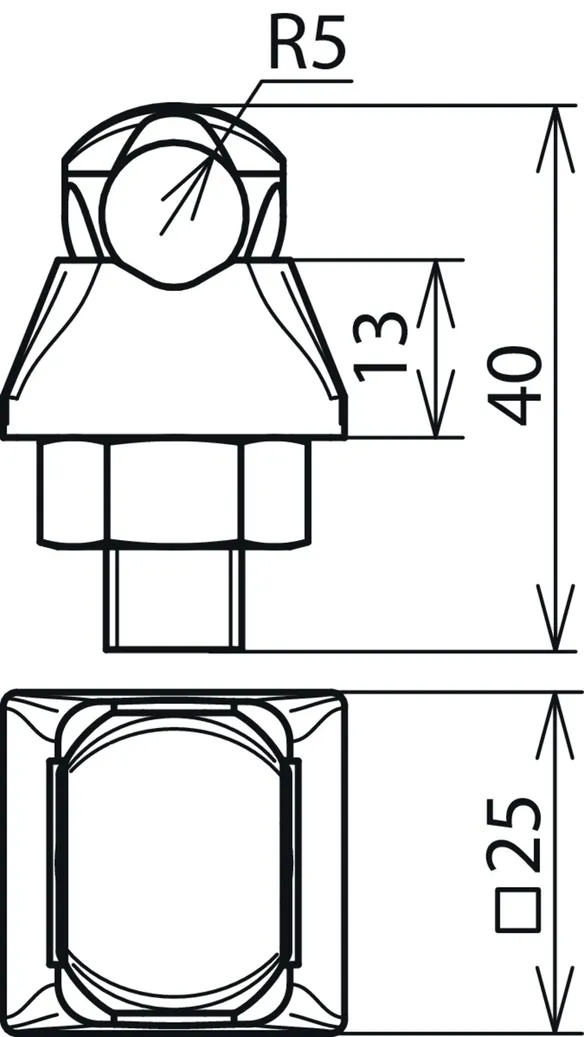

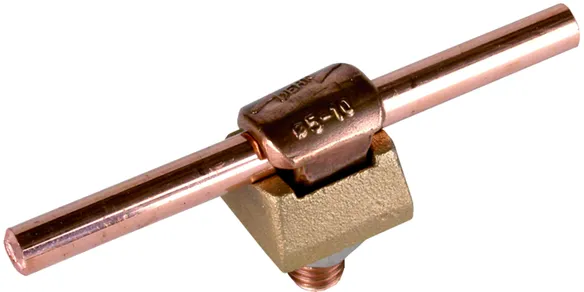

Part No. 301007 KSV 6.10 CU

GTIN 4013364021358, Customs tariff No. (EU): 85359000, Gross weight: 76.00 g, PU: 1.00 pc(s)

Images

Additional information

KS connector, one-piece, Cu
KS connector for connection to flat profiles
Material of clamping screw: Cu
Material of clamp: high copper alloy
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: KSV 6.10 CU
Part No.: 301007
or equivalent.

Certificates



Technical data

Material of clamping screw Cu
Material of clamp high copper alloy
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 16-50 mm2
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 301007 was added to Notepad.

Go to Notepad

Product 301007 was added to the cart.

Go to Web-Shop

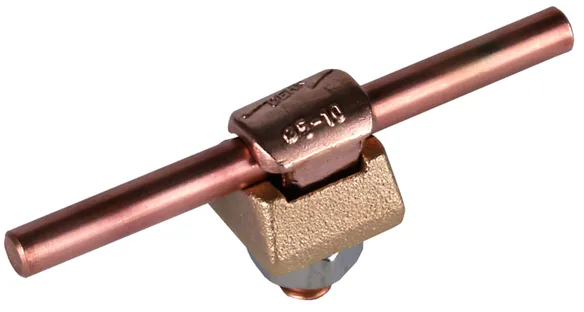

Part No. 301017 KSV 6.10 FER CU

GTIN 4013364053502, Customs tariff No. (EU): 85359000, Gross weight: 79.60 g, PU: 100.00 pc(s)

Images

Additional information

KS connector, one-piece, Cu
KS connector for connection to flat profiles
Material of clamping screw: Cu
Material of clamp: high copper alloy
Clamping range Rd: 6-10 mm
Type: + spring washer
Standard: EN 62561-1

Brand: DEHN
Type: KSV 6.10 FER CU
Part No.: 301017
or equivalent.

Certificates



Technical data

Material of clamping screw Cu
Material of clamp high copper alloy
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 25-70 mm2
Type + spring washer
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 301017 was added to Notepad.

Go to Notepad

Product 301017 was added to the cart.

Go to Web-Shop

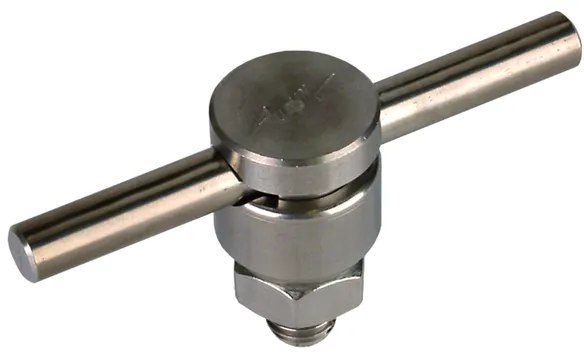

One-piece, StSt

With screw and nut M10.

5 Products

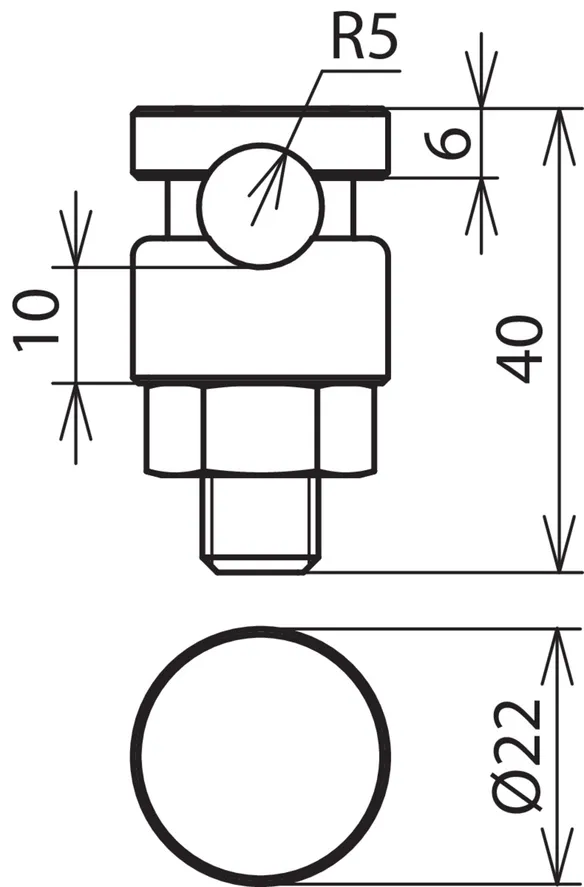

Part No. 301009 KSV 6.10 V2A

GTIN 4013364081284, Customs tariff No. (EU): 85359000, Gross weight: 61.80 g, PU: 100.00 pc(s)

Images

Additional information

KS connector, one-piece, StSt
KS connector for connection to flat profiles
Material of clamping screw: StSt
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: KSV 6.10 V2A
Part No.: 301009
or equivalent.

Certificates



Technical data

Material of clamping screw StSt
Material of clamp StSt
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 25-70 mm2
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 301009 was added to Notepad.

Go to Notepad

Product 301009 was added to the cart.

Go to Web-Shop

Part No. 301089 KSV 6.10 V4A

GTIN 4013364304161, Customs tariff No. (EU): 85359000, Gross weight: 63.00 g, PU: 100.00 pc(s)

Images

Additional information

KS connector, one-piece, StSt (V4A)
KS connector for connection to flat profiles
Material of clamping screw: StSt (V4A)
Material of clamp: StSt (V4A)
Clamping range Rd: 6-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: KSV 6.10 V4A
Part No.: 301089
or equivalent.

Certificates



Technical data

Material of clamping screw StSt (V4A)
Material of clamp StSt (V4A)
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 25-70 mm2
Material No. 1.4571 / 1.4404 / 1.4401
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 301089 was added to Notepad.

Go to Notepad

Product 301089 was added to the cart.

Go to Web-Shop

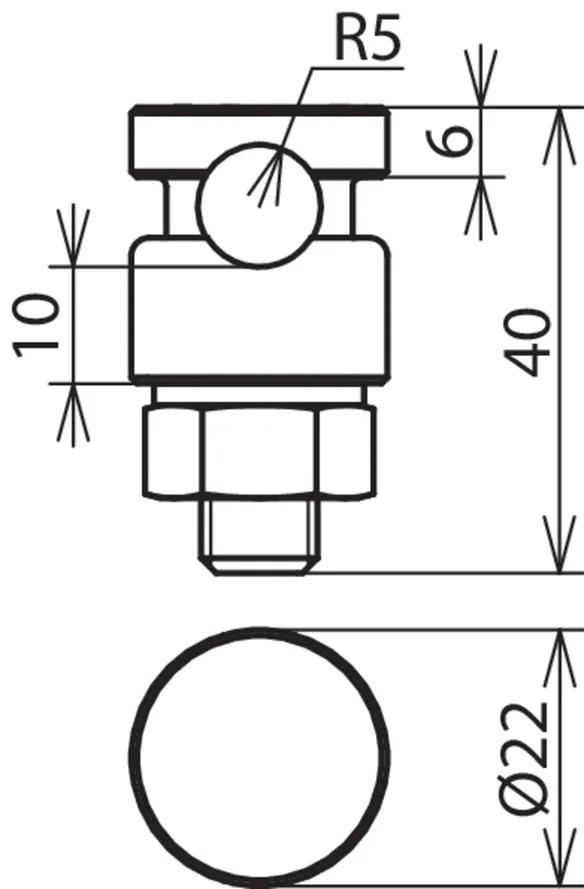

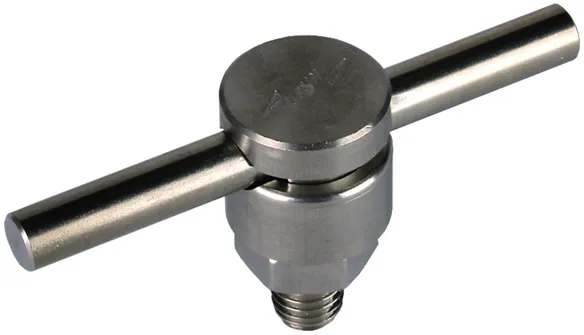

Part No. 301019 KSV 6.10 FER V2A

GTIN 4013364081277, Customs tariff No. (EU): 85359000, Gross weight: 63.80 g, PU: 100.00 pc(s)

Images

Additional information

KS connector, one-piece, StSt
KS connector
For connection of round conductors, e.g. to flat profiles
or other parts of the lightning protection system
Material of clamping screw: StSt
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Type: + spring washer
Standard: EN 62561-1

Brand: DEHN
Type: KSV 6.10 FER V2A
Part No.: 301019
or equivalent.

Certificates



Technical data

Material of clamping screw StSt
Material of clamp StSt
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 25-70 mm2
Type + spring washer
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 301019 was added to Notepad.

Go to Notepad

Product 301019 was added to the cart.

Go to Web-Shop

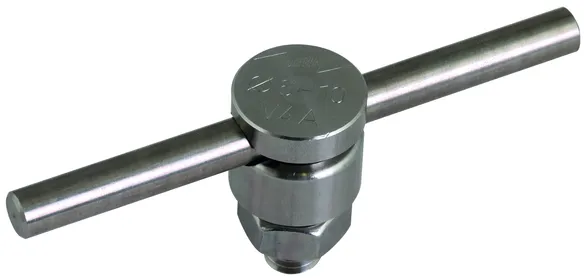

Part No. 301099 KSV 6.10 FER V4A

GTIN 4013364304178, Customs tariff No. (EU): 85359000, Gross weight: 65.00 g, PU: 100.00 pc(s)

Images

Additional information

KS connector, one-piece, StSt (V4A)
KS connector for connection to flat profiles
Material of clamping screw: StSt (V4A)
Material of clamp: StSt (V4A)
Clamping range Rd: 6-10 mm
Type: + spring washer
Standard: EN 62561-1

Brand: DEHN
Type: KSV 6.10 FER V4A
Part No.: 301099
or equivalent.

Certificates



Technical data

Material of clamping screw StSt (V4A)
Material of clamp StSt (V4A)
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 25-70 mm2
Type + spring washer
Material No. 1.4571 / 1.4404 / 1.4401
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 301099 was added to Notepad.

Go to Notepad

Product 301099 was added to the cart.

Go to Web-Shop

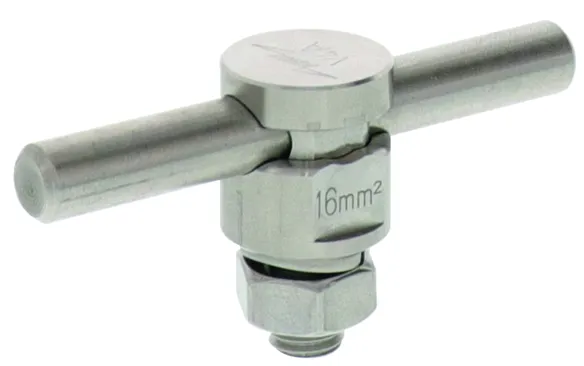

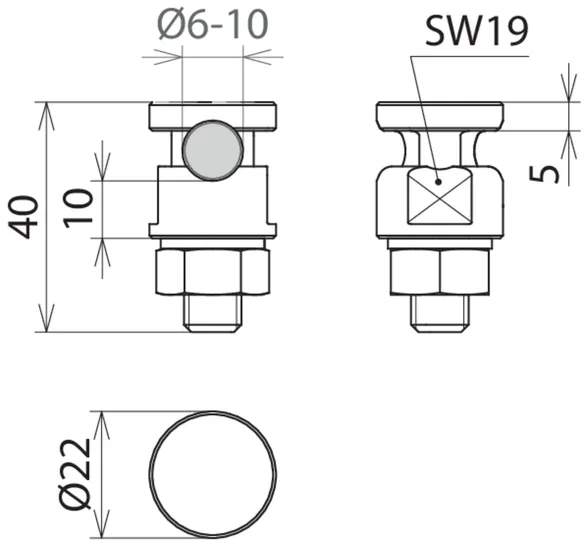

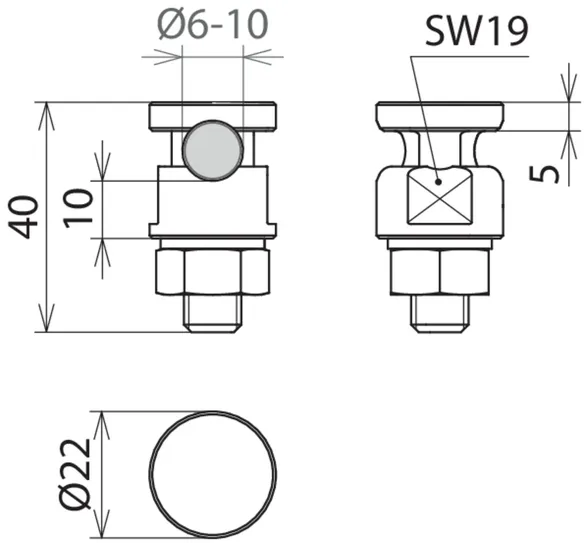

Part No. 540122 UKSV 6.10 AQ16 50 V4A

GTIN 4013364379930, Customs tariff No. (EU): 85359000, Gross weight: 66.00 g, PU: 25.00 pc(s)

Images

Additional information

KS connector one-piece StSt (V4A)
KS connector for connection to flat profiles
with guide and flat
Material of clamping screw: StSt (V4A)
Material of clamp: StSt (V4A)
Clamping range Rd: 6-10 mm
Type: + spring washer
Standard: EN 62561-1

Brand: DEHN
Type: UKSV 6.10 AQ16 50 V4A
Part No.: 540122
or equivalent.

Certificates



Technical data

Material of clamping screw StSt (V4A)
Material of clamp StSt (V4A)
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 16-50 mm2
Type + spring washer
Material No. 1.4401
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 540122 was added to Notepad.

Go to Notepad

Product 540122 was added to the cart.

Go to Web-Shop

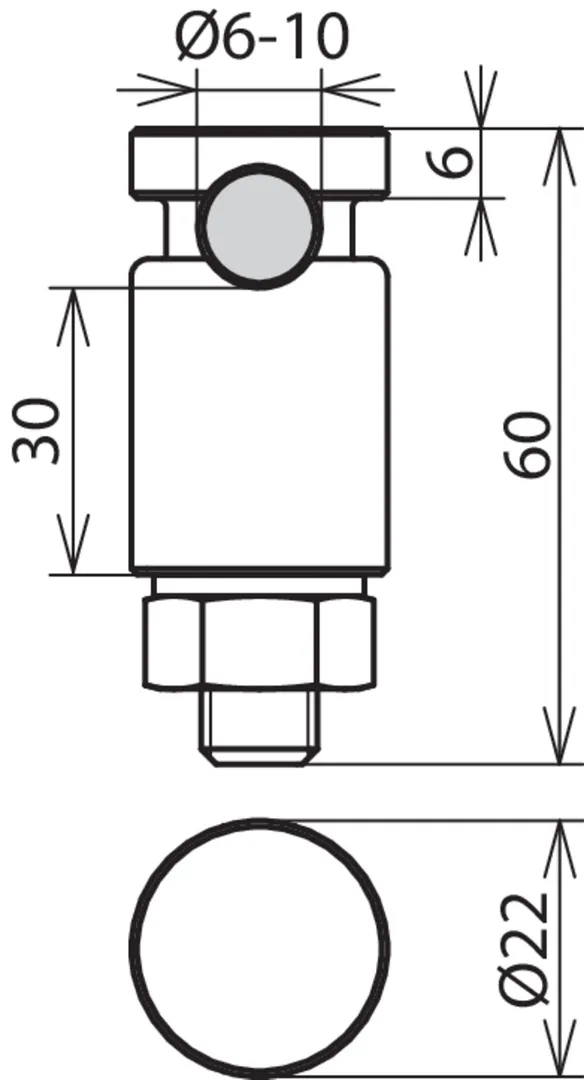

One-piece, long, StSt

With screw and nut M10, length 60 mm.

1 Product

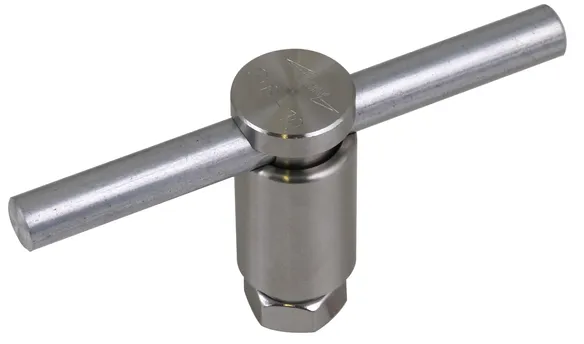

Part No. 301020 KSVL 6.10 FER V2A

GTIN 4013364481541, Customs tariff No. (EU): 85359000, Gross weight: 120.00 g, PU: 1.00 pc(s)

Images

Additional information

KS connector, one-piece, StSt
KS connector
For connection of round conductors, e.g. to flat profiles
or other parts of the lightning protection system
Material of clamping screw: StSt
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Type: + spring washer
Standard: EN 62561-1

Brand: DEHN
Type: KSVL 6.10 FER V2A
Part No.: 301020
or equivalent.

Certificates



Technical data

Material of clamping screw StSt
Material of clamp StSt
Clamping range Rd 6-10 mm
Connection (single-wire / multi-wire) 25-70 mm2
Type + spring washer
Standard EN 62561-1

Product 301020 was added to Notepad.

Go to Notepad

Product 301020 was added to the cart.

Go to Web-Shop

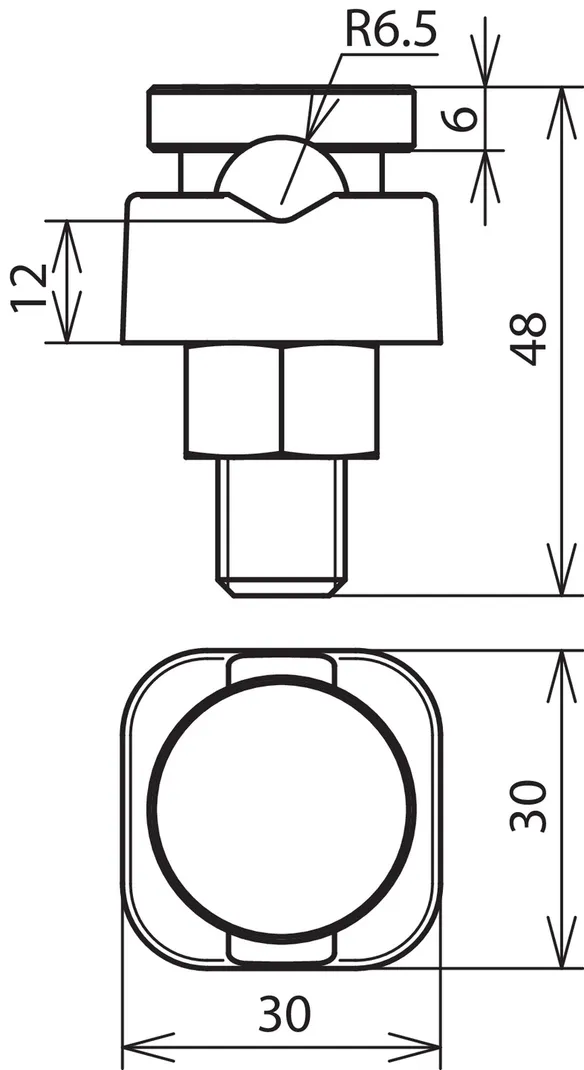

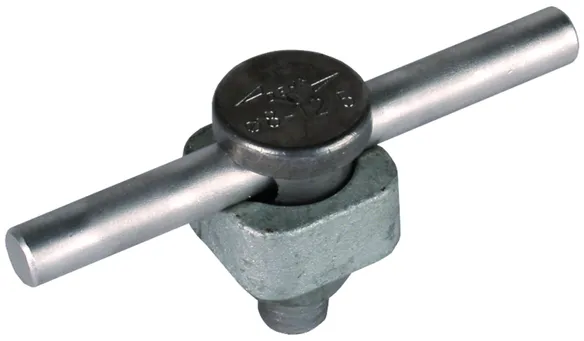

Heavy design

With screw and nut M12.

2 Products

Part No. 300002 KSV 8.12.5 STTZN

GTIN 4013364024052, Customs tariff No. (EU): 85359000, Gross weight: 118.20 g, PU: 25.00 pc(s)

Images

Additional information

KS connector, heavy, St/tZn / MCI
KS connector
For connection to flat profiles
also for cross sections of 50-95 mm2
Material of clamping screw: St/tZn
Material of clamp: MCI
Clamping range Rd: 8-12.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: KSV 8.12.5 STTZN
Part No.: 300002
or equivalent.

Certificates



Technical data

Material of clamping screw St/tZn
Material of clamp MCI
Clamping range Rd 8-12.5 mm
Connection (single-wire / multi-wire) 50-95 mm2
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 300002 was added to Notepad.

Go to Notepad

Product 300002 was added to the cart.

Go to Web-Shop

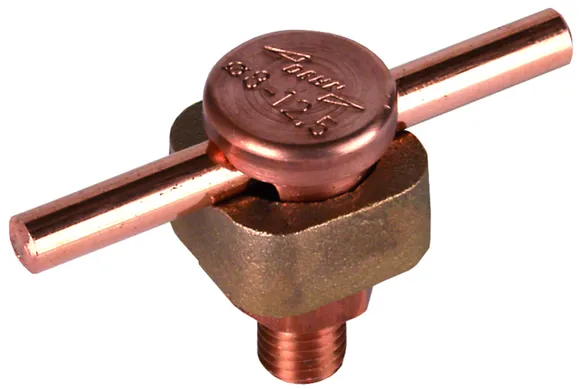

Part No. 300017 KSV 8.12.5 CU

GTIN 4013364024069, Customs tariff No. (EU): 85359000, Gross weight: 157.20 g, PU: 1.00 pc(s)

Images

Additional information

KS connector, heavy, Cu/RCB
KS connector
For connection to flat profiles
also for cross sections of 50-95 mm2
Material of clamping screw: Cu
Material of clamp: high copper alloy
Clamping range Rd: 8-12.5 mm
Standard: EN 62561-1

Brand: DEHN
Type: KSV 8.12.5 CU
Part No.: 300017
or equivalent.

Certificates



Technical data

Material of clamping screw Cu
Material of clamp high copper alloy
Clamping range Rd 8-12.5 mm
Connection (single-wire / multi-wire) 50-95 mm2
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 300017 was added to Notepad.

Go to Notepad

Product 300017 was added to the cart.

Go to Web-Shop

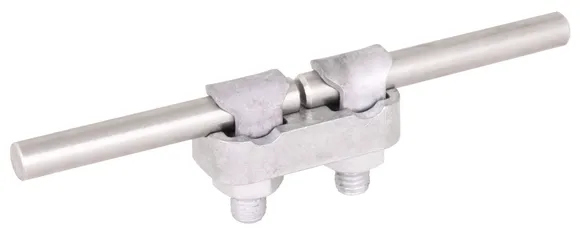

Two-piece, gap 30 mm

With screw and nut M10.

1 Product

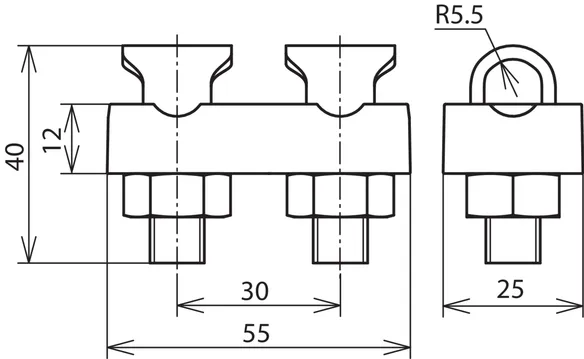

Part No. 302010 KSV 2X7.10 STTZN

GTIN 4013364134904, Customs tariff No. (EU): 85359000, Gross weight: 138.80 g, PU: 50.00 pc(s)

Images

Additional information

KS connector, two-piece, distance: 30 mm, St/tZn / ZDC
KS connector for connection to flat profiles
Material of clamping screw: St/tZn
Material of clamp: ZDC
Clamping range Rd: 7-10 mm
Standard: EN 62561-1

Brand: DEHN
Type: KSV 2X7.10 STTZN
Part No.: 302010
or equivalent.

Certificates



Technical data

Material of clamping screw St/tZn
Material of clamp ZDC
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 302010 was added to Notepad.

Go to Notepad

Product 302010 was added to the cart.

Go to Web-Shop

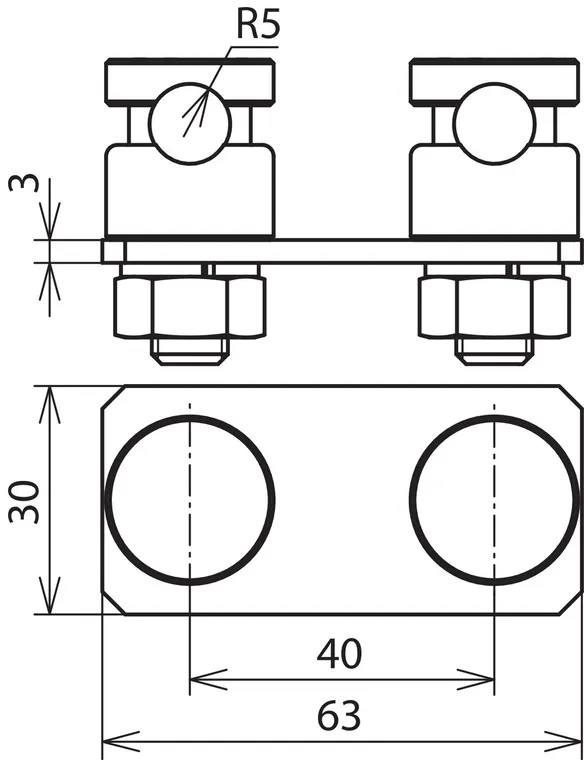

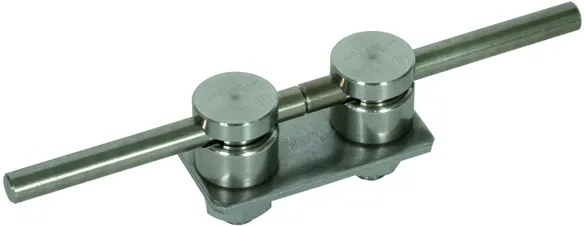

Two-piece, gap 40 mm

With screw and nut M10.

1 Product

Part No. 301229 AP 2X6.10 V2A

GTIN 4013364101562, Customs tariff No. (EU): 85389099, Gross weight: 167.00 g, PU: 1.00 pc(s)

Images

Additional information

KS connector, two-piece, distance: 40 mm, StSt
Connecting plate
For connecting the HVI Conductor to the air-termination tip
With two KS connectors including spring washer
Material of clamping screw: StSt
Material of clamp: StSt
Clamping range Rd: 6-10 mm
Type: + spring washer
Standard: EN 62561-1

Brand: DEHN
Type: AP 2X6.10 V2A
Part No.: 301229
or equivalent.

Certificates



Technical data

Material of clamping screw StSt
Material of clamp StSt
Clamping range Rd 6-10 mm
Type + spring washer
Standard EN 62561-1
*) For exact classification, see test certificate.

Product 301229 was added to Notepad.

Go to Notepad

Product 301229 was added to the cart.

Go to Web-Shop
back to top
