Short-Circuiting Bar

  • Simply compile the right short circuit bar online
  • Individual configuration
  • Permanent plausibility check in the background
  • With longitudinal slot for reliable contact
  • High short-circuit current strength up to max. 130 kA / 0.5 s for low-voltage systems (LV) and 80 kA / 0.5 s for medium-voltage systems (MV)
  • For use with earthing sticks for hexagon or T pin shafts
  • Short-circuiting bar and earthing cable lengths can be selected online via the earthing and short-circuiting configurator

Details

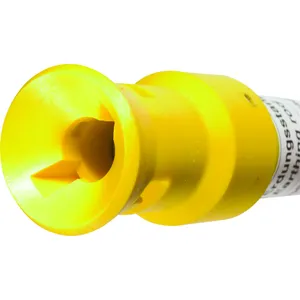

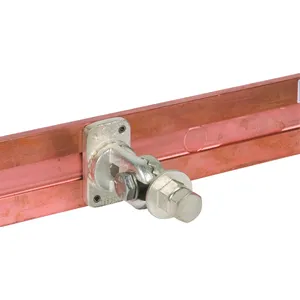

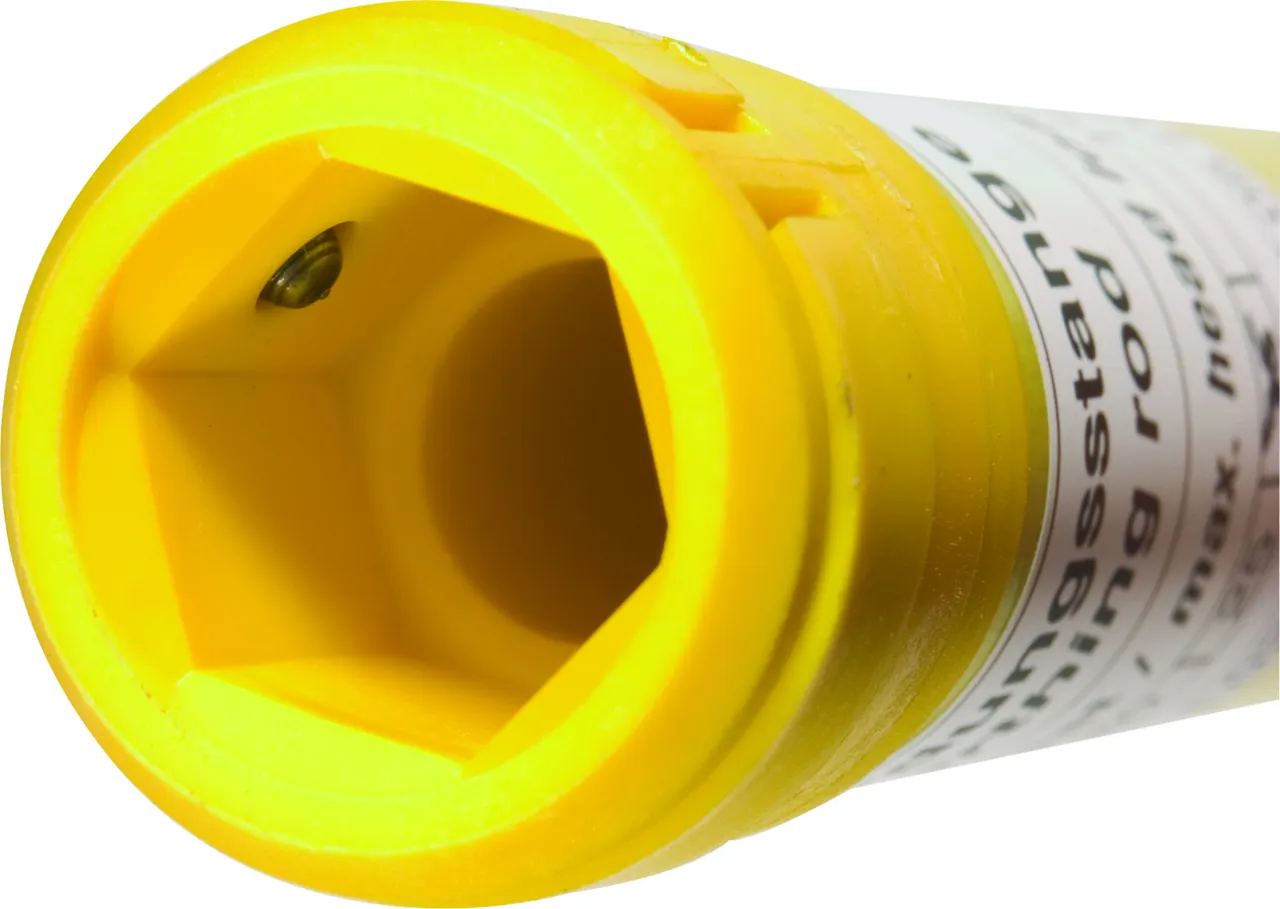

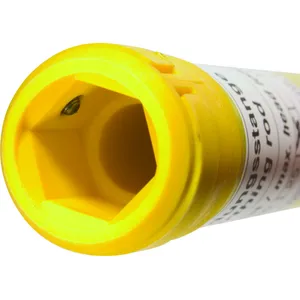

SK: Hexagon shaft.
lorem ipsum

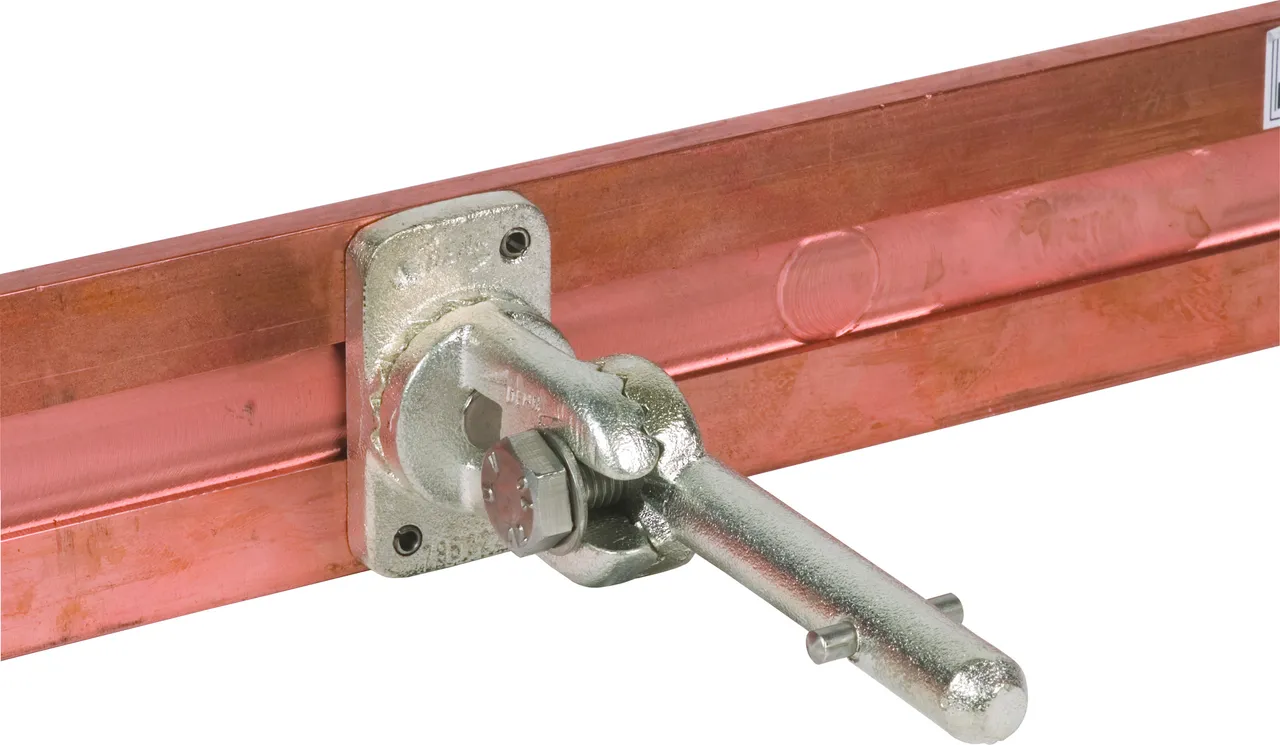

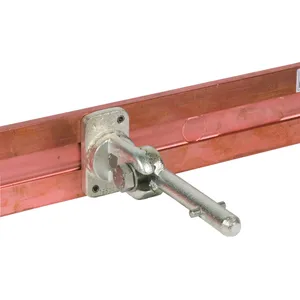

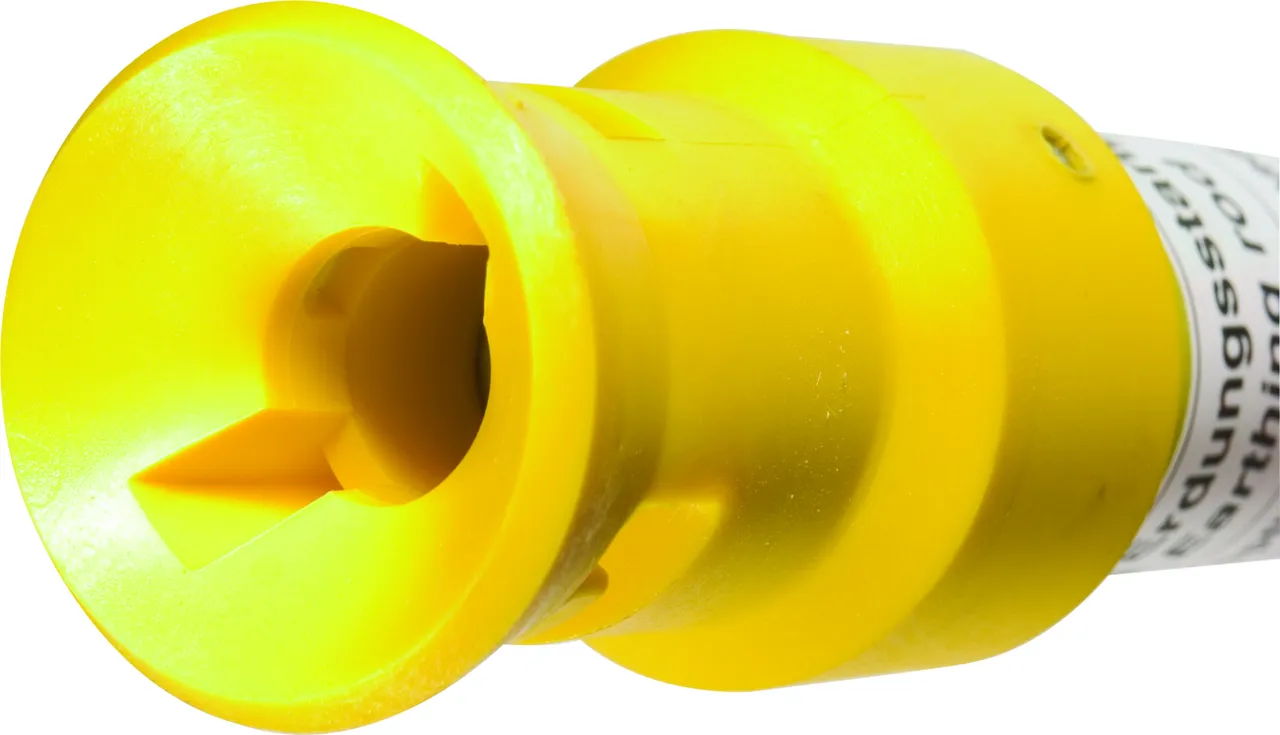

SQ: T pin shaft (bayonet locking mechanism).
lorem ipsum
lorem ipsum
lorem ipsum

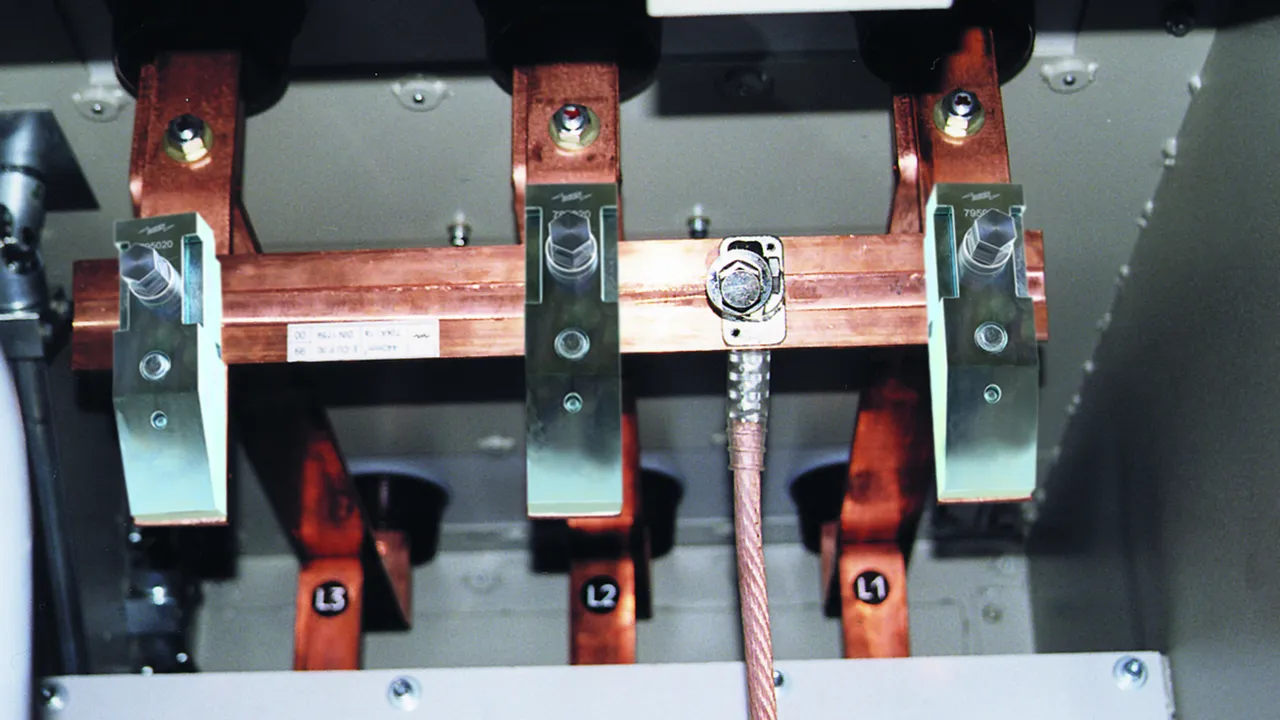

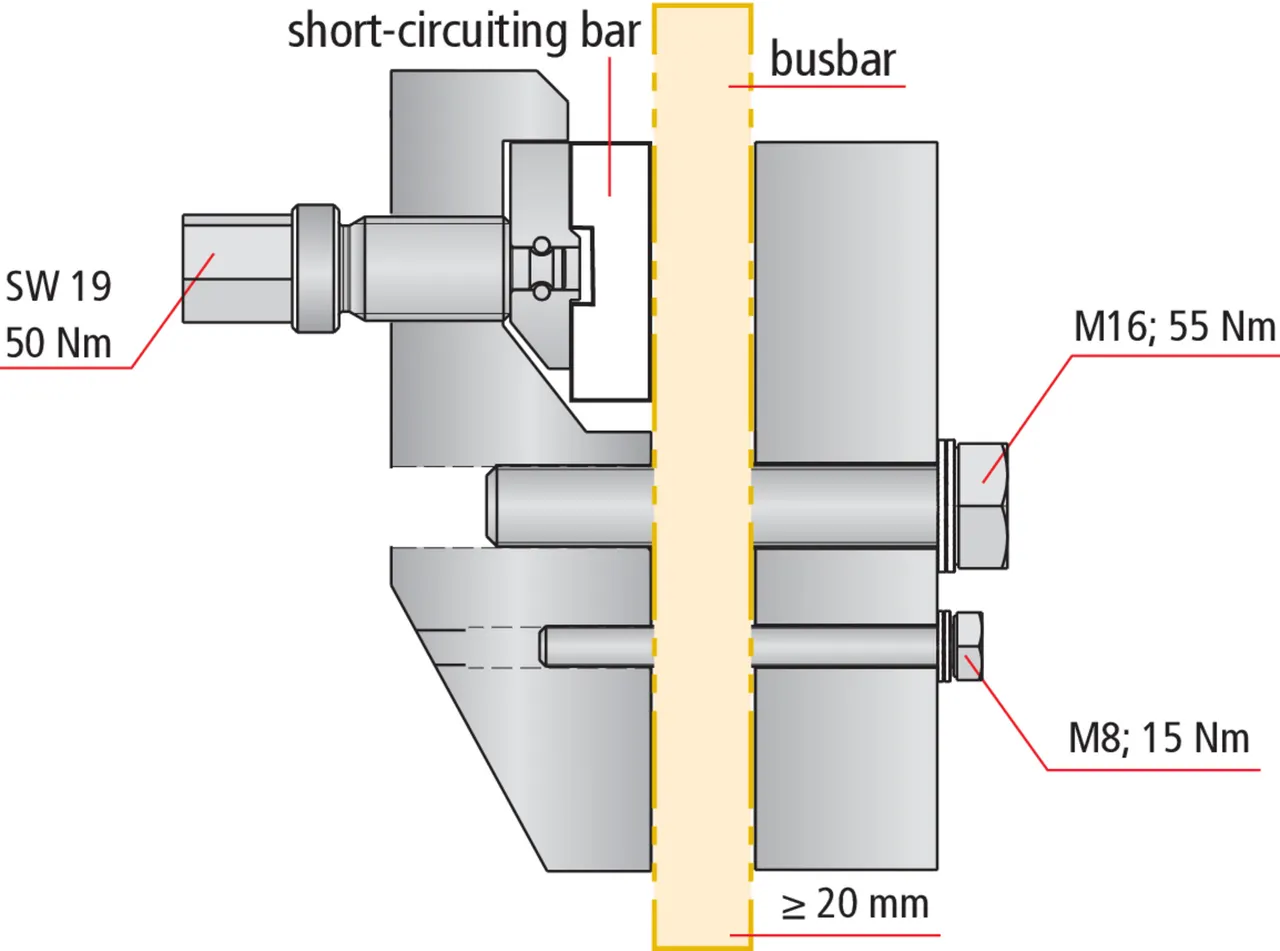

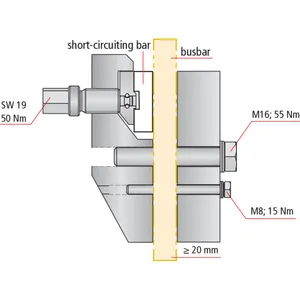

Fixed clamping point mounted on busbar and inserted short-circuiting bar
lorem ipsum

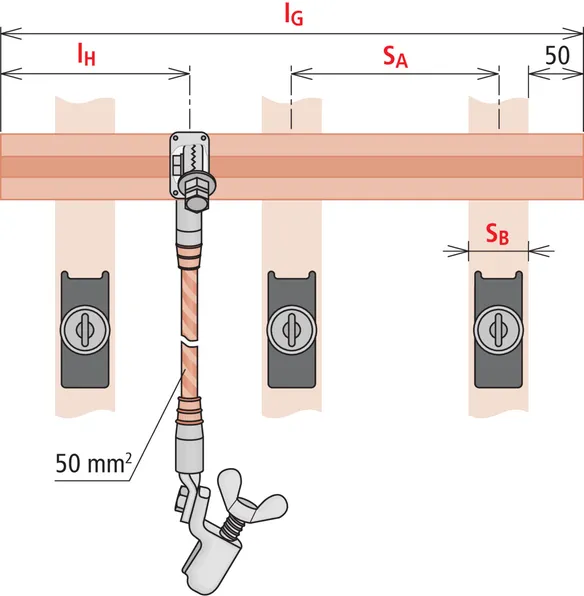

Short-Circuiting Bar made of Copper

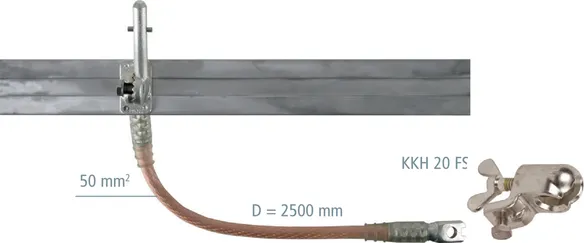

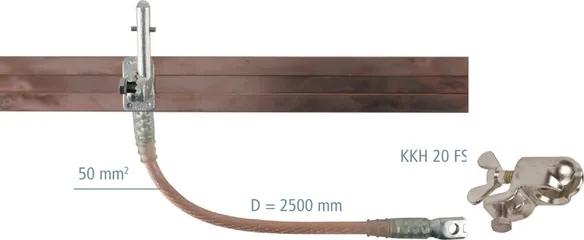

Rigid ball head cap (KKH 20 FS) on the earth cable end.

4 Products

Part No. VL2FG28 KS SQ C NS VL2FG28

GTIN 4013364450820, Customs tariff No. (EU): 85359000, Gross weight: 6.18 kg, PU: 1.00 pc(s)

Images

Additional information



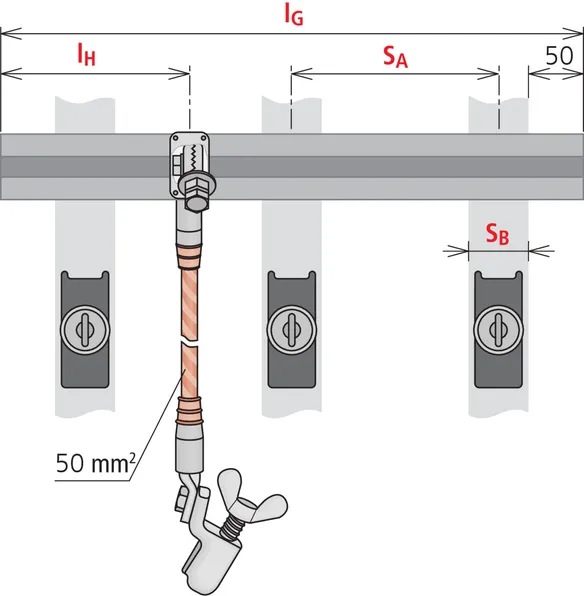

Technical data

Application LV
Coupling mechanism SQ
Position of the coupling mechanism (IH ) 175 mm
Total length (lG ) 500 mm
Bar spacing (SA ) 150 mm
Max. short-circuit current Ik 0.5 s 130 kA
Max. short-circuit current Ik 1 s 90 kA
Note: When ordering please specify the relevant Variant No.
